ZF 5HP19FL / FLA - Oil Supply Seal Kit (Diagram #1)

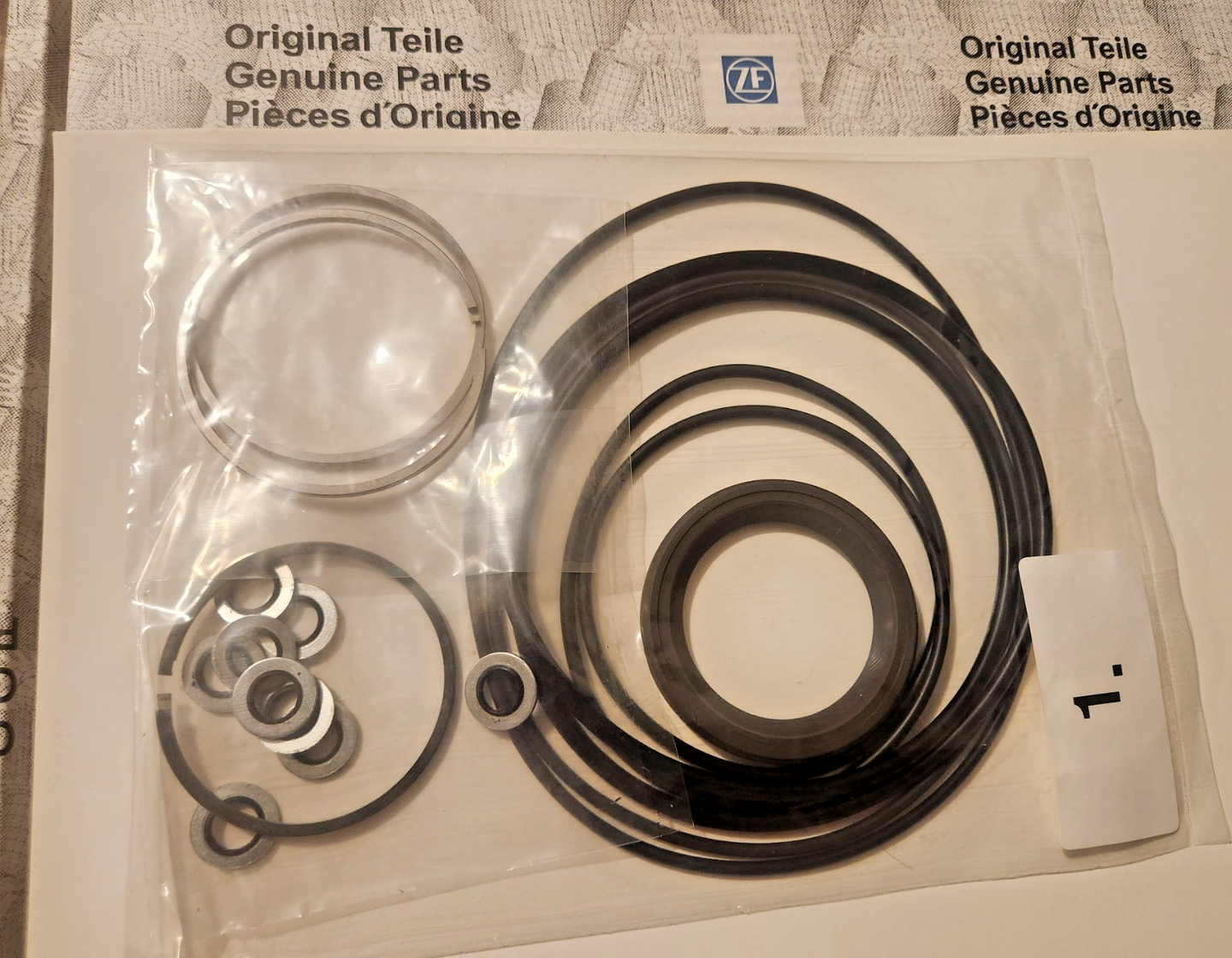

📦 Contents in Kit (Matches Your Picture)

  • O-Rings (various diameters) → Sealing of oil circuits

  • Teflon/PTFE Rings → Used on shafts for sealing high-pressure passages

  • Metal/Steel-clad sealing washers → Used for oil feed passages

  • Radial Lip Seal → Shaft seal to prevent leaks

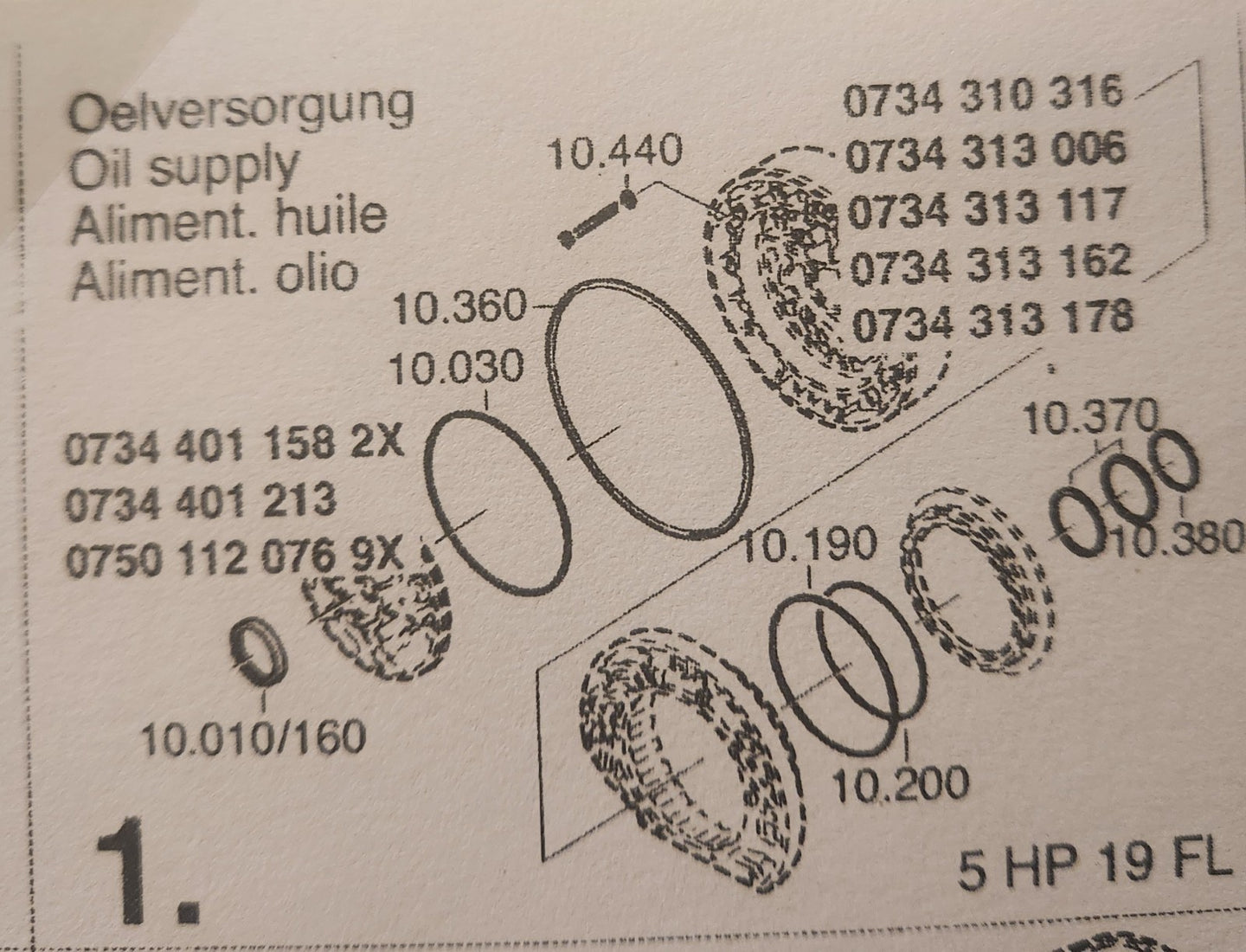

📝 OE Numbers from Diagram

Diagram Ref. OE Part Number Qty Description / Function
10.010/160 0734 401 158 2X Teflon sealing rings (shaft seals, input/output)
10.030 0734 401 213 1 Large O-ring (pump housing seal)
10.360 0750 112 076 9X Small O-rings (oil feed channels)
10.190-10.200 0734 310 316 1 Radial shaft seal
10.190-10.200 0734 313 006 / 117 / 162 / 178 — Various updated sealing rings depending on build revision
10.370-10.380 — — Sealing washers for oil supply passages

⚙️ Transmission Application

This kit applies to ZF 5HP19FL / 5HP19FLA transmissions, which are front-wheel drive & all-wheel drive longitudinal versions of the 5HP19 family.

✅ Common Vehicle Fits

  • Audi (FWD & Quattro AWD)

    • A4 (1996-2008)

    • A6 (1997-2004)

    • A8 (1997-2003)

  • Volkswagen (FWD & AWD)

    • Passat (1997-2005)

    • Phaeton (early models)

  • Porsche

    • Boxster (1997-2004, Tiptronic with 5HP19FLA)

    • 911 Carrera (996 models with Tiptronic, 1999-2004)

AUTOTTEC

ZF 5HP19FL / FLA – Oil Supply Seal Kit (AUDI/VW/PORSCHE) (Diagram #1)

$37.99

ZF 5HP19FL / FLA - Oil Supply Seal Kit (Diagram #1)

📦 Contents in Kit (Matches Your Picture)

  • O-Rings (various diameters) → Sealing of oil circuits

  • Teflon/PTFE Rings → Used on shafts for sealing high-pressure passages

  • Metal/Steel-clad sealing washers → Used for oil feed passages

  • Radial Lip Seal → Shaft seal to prevent leaks

📝 OE Numbers from Diagram

Diagram Ref. OE Part Number Qty Description / Function
10.010/160 0734 401 158 2X Teflon sealing rings (shaft seals, input/output)
10.030 0734 401 213 1 Large O-ring (pump housing seal)
10.360 0750 112 076 9X Small O-rings (oil feed channels)
10.190-10.200 0734 310 316 1 Radial shaft seal
10.190-10.200 0734 313 006 / 117 / 162 / 178 — Various updated sealing rings depending on build revision
10.370-10.380 — — Sealing washers for oil supply passages

⚙️ Transmission Application

This kit applies to ZF 5HP19FL / 5HP19FLA transmissions, which are front-wheel drive & all-wheel drive longitudinal versions of the 5HP19 family.

✅ Common Vehicle Fits

  • Audi (FWD & Quattro AWD)

    • A4 (1996-2008)

    • A6 (1997-2004)

    • A8 (1997-2003)

  • Volkswagen (FWD & AWD)

    • Passat (1997-2005)

    • Phaeton (early models)

  • Porsche

    • Boxster (1997-2004, Tiptronic with 5HP19FLA)

    • 911 Carrera (996 models with Tiptronic, 1999-2004)
