ADVANCED TRANSMISSION PARTS

ADVANCED # D49276AD

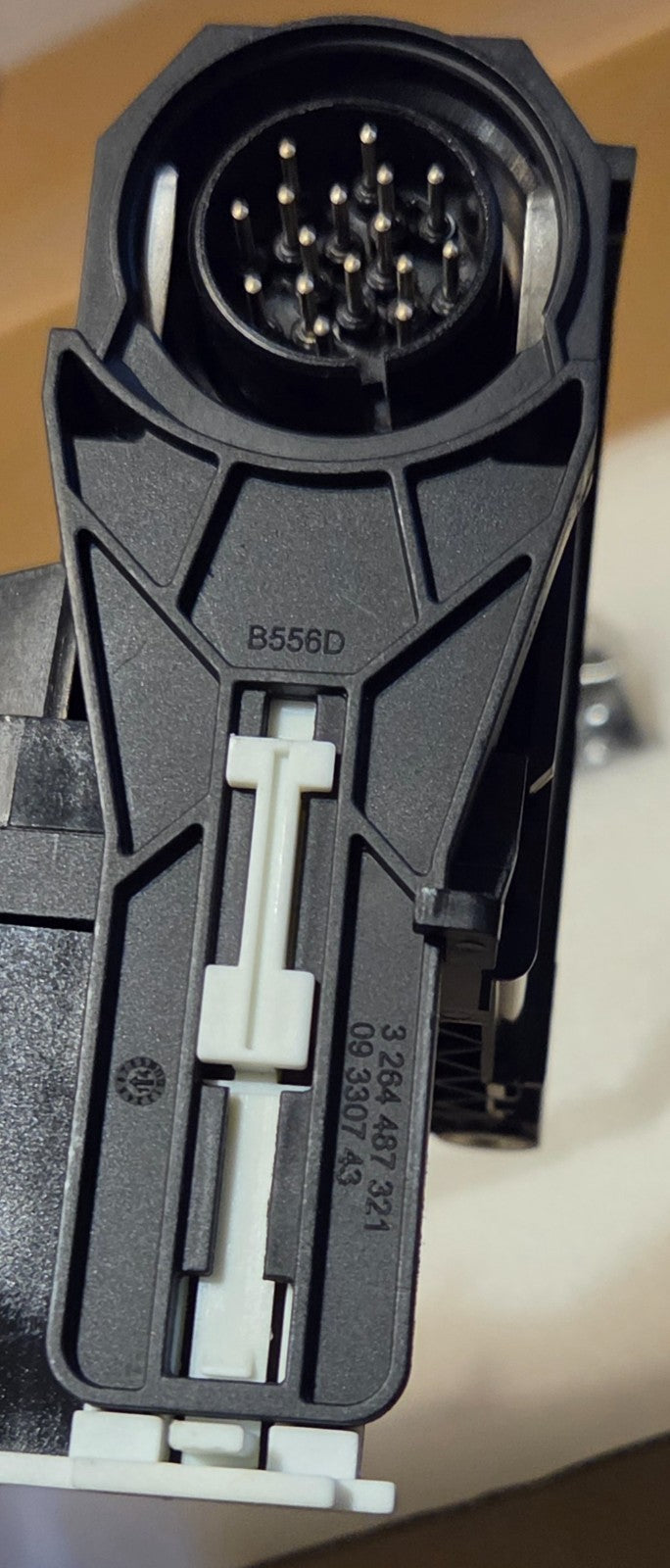

Name: Fit FORD 6R80 Transmission Circuit Board with Case Connector Year 08-up
Brand: Factory/OEM
Price: 125.00 USD

FORD OE: AL3Z-7G276-D

6R80 CIRCUIT BOARD LEAD FRAME (TCM)

2008-UP

Product Description

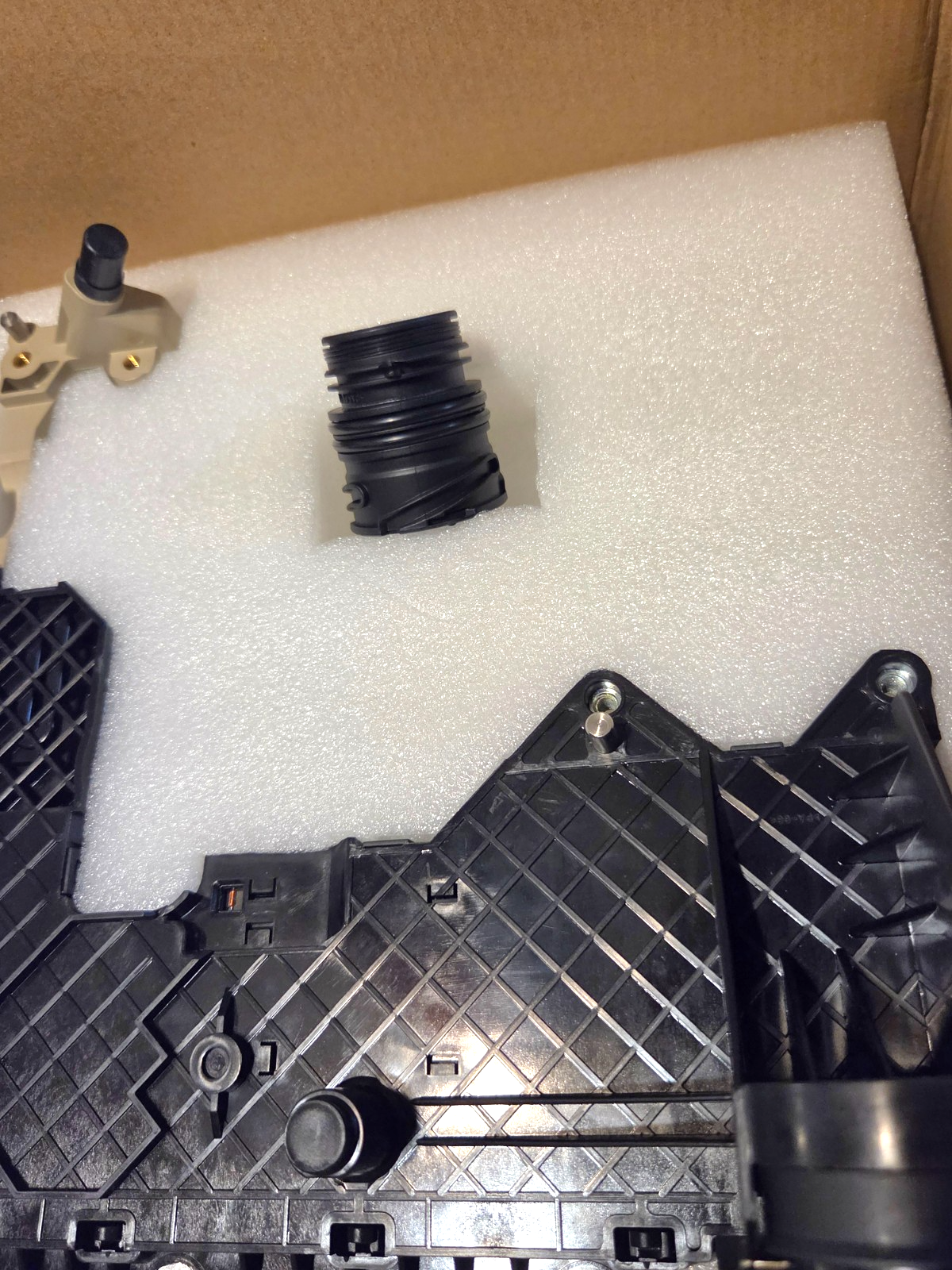

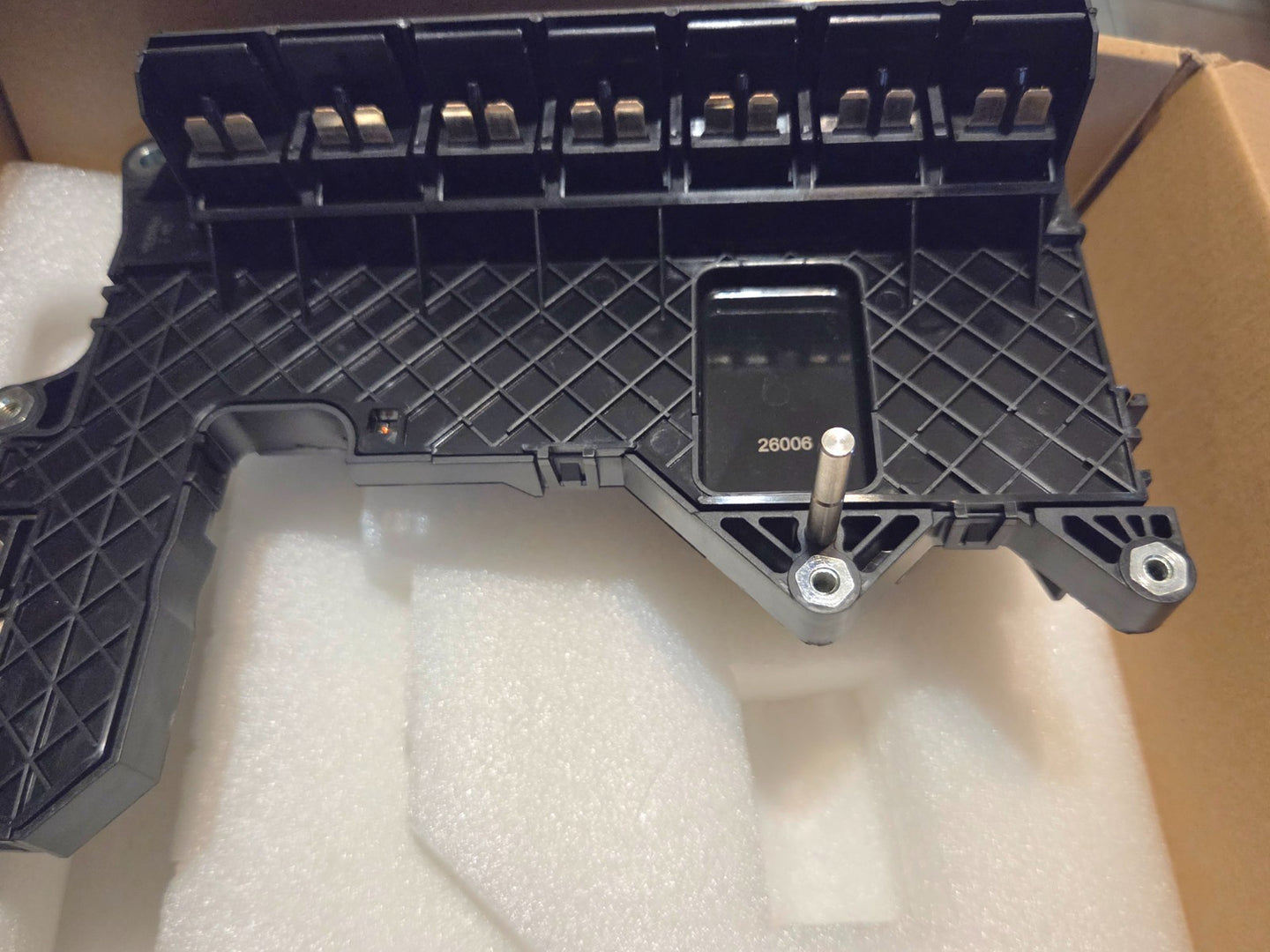

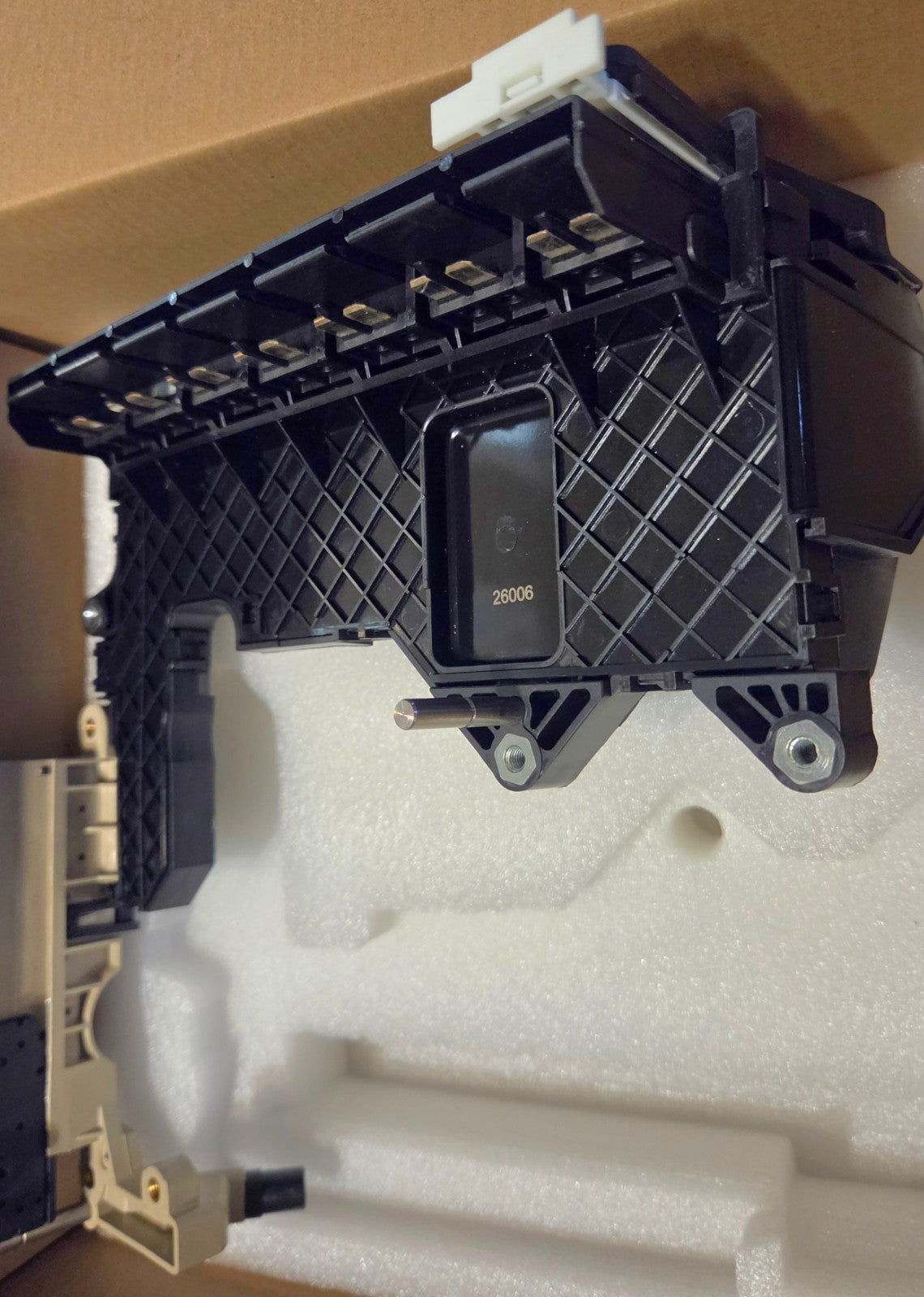

OEM-quality Circuit Board Lead Frame (TCM) for the Ford 6R80 6-Speed Automatic Transmission . This internal lead frame contains the transmission speed sensors and electrical circuits that communicate with the Transmission Control Module (TCM), ensuring accurate shift timing, pressure control, and gear selection. Designed as a direct replacement for failed or damaged lead frames. Ford's current service part number is AL3Z-7G276-D .

Fits Transmission

Ford 6R80 6-Speed Automatic Transmission

Vehicle Applications

Ford F-150 (6R80)

2009-2019
3.3L V6
3.5L V6
3.7L V6
4.6L V8
5.0L V8
6.2L V8

Ford Expedition (6R80)

2012-2014
5.4L V8

Ford Mustang (6R80)

2011-2014
3.7L V6
4.6L V8
5.0L V8
5.4L Supercharged V8
5.8L Supercharged V8

Ford Transit

2017-2019
3.2L Diesel I5
3.5L V6 EcoBoost
3.7L V6

Lincoln Navigator

2012-2014
5.4L V8

Lincoln Mark LT

2010-2014
3.5L V6
3.7L V6
4.6L V8
5.0L V8
6.2L V8

Features

OEM-style direct replacement
Built-in transmission speed sensors
Restores proper TCM communication
Corrects many shift-related electrical faults
Ideal during valve body service or transmission overhaul
Premium quality construction for long service life

Transmission: Ford 6R80 6-Speed Automatic
Advanced Part Number: D49276AD
Ford OE: AL3Z-7G276-D
