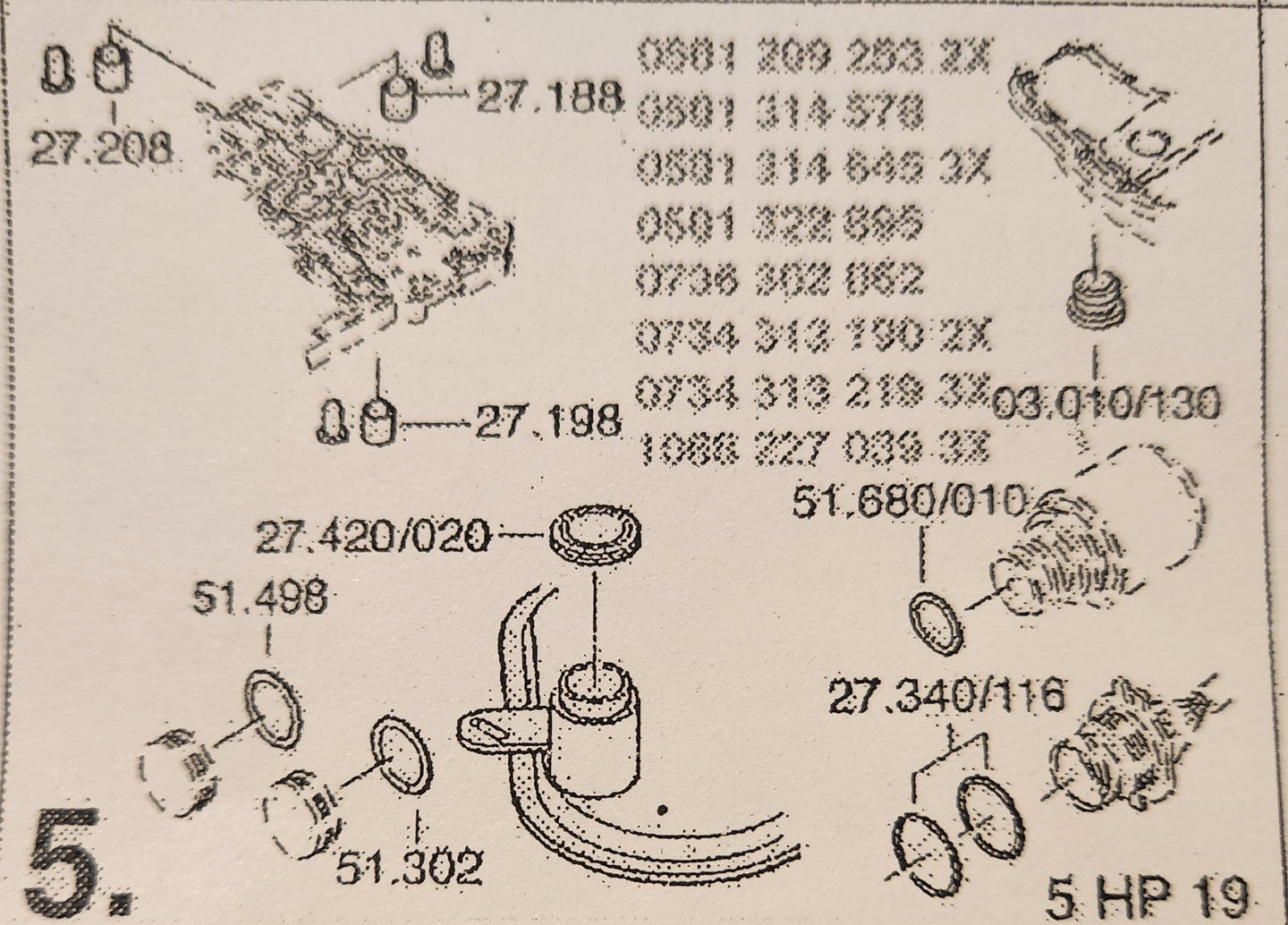

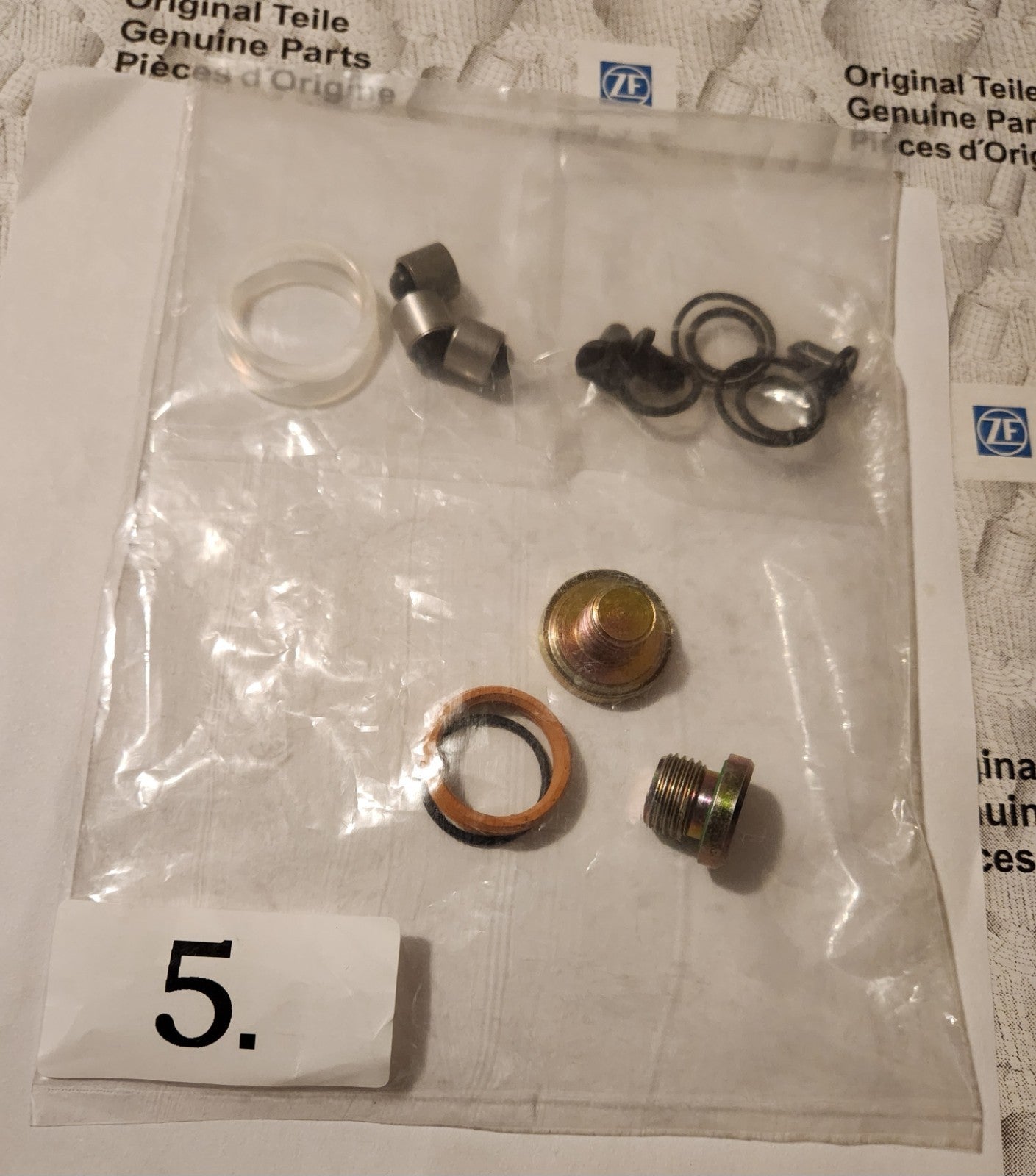

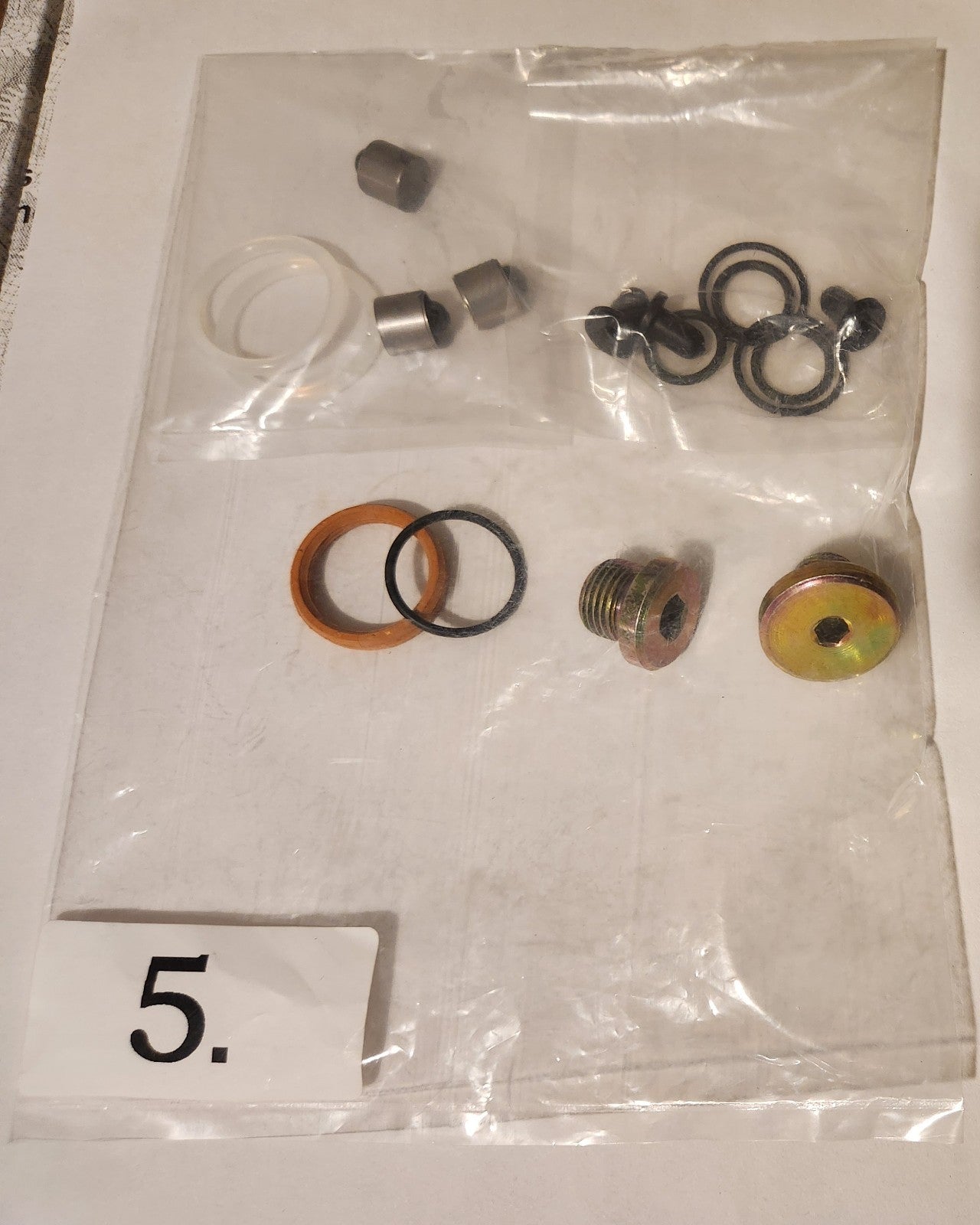

ZF ORGINAL # 5 DIAGRAM Details

"ZF 5HP19 BMW RWD Valve-Body Plug & Seal Service Set (Diagram #5) - OE Test/Closing Plugs, Seals, Screws - A5S 325Z"

# Part Purpose / location ZF ref on diagram*
1 Large yellow-zinc internal-hex plug (conical face) Valve-body hydraulic test/closing plug (VB exterior) 51.680/010
2 Small yellow-zinc internal-hex plug (with step/flange) Secondary VB closing plug / port plug 27.340/116
3 Copper crush washer Seals the large plug (#1) with 51.680/010
4 Black O-ring (small) Seals the small plug (#2) with 27.340/116
5 4 × black screws with bonded sealing washers Valve-body cover/test-port screws (sealing type) group near 27.188 / 27.198 block
6 3 × short grey steel cylinders (end plugs) Valve-body bore end plugs for shift/pressure valves 27.188 / 27.198 (shown 3× on VB)
7 1 × translucent PTFE back-up ring Back-up/seal ring used with a VB plug/end plug 27.420/020

BMW (RWD) fitment chart - ZF 5HP19 / A5S 325Z

Make/Model Chassis Engine range Years (typical U.S.)
BMW 323i / 323Ci E46 2.5L (M52TU) 1999-2000
BMW 325i / 325Ci / 325xi* E46 2.5L (M54) 2001-2005
BMW 328i E46 2.8L (M52TU) 1999-2000
BMW 330i / 330Ci / 330xi* E46 3.0L (M54) 2001-2005
BMW 525i (sedan/touring) E39 2.5L (M54) 2001-2003
BMW Z3 2.5/3.0 (late) E36/7 M52TU/M54 2000-2002
BMW Z4 2.5i/3.0i E85 M54 2003-2005/06
